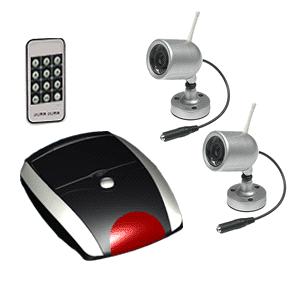

CCTV 2.4GHz wireless 2-camera or 4-camera-MDS-812X-708

Detailed Product Description

Features:

* 2.4GHz wireless 2-camera or 4-camera.
* Manual or Auto Scan between 4 channels..
* Day&Night vision with Infrared Led.
* 380TV line 1/3-inch COMS screen display.
* Weather-proof aluminum shell.
* Adaptive bracket and remote control.

Specifications:
Camera Specification	Frequency: ISM 2,400 - 2,483MHz
	Imaging Sensor: 1/3 inch OMNIVISION Color CMOS
	Horizontal Resolution:380TV Line
	CCD Total Pixels: 628 x 582 (PAL) / 510 x 492 (NTSC)
	View Angles: 62 degrees
	Minimum Illumination: 0Lux / F1.5
	Gain Control: Automatic
	Transmission Power: 10mW
	Consumption Current: 80 mA
	Modulation Mode: FM
	Bandwidth: 18M
	Operating Range: 30m/100m (Obstructed / Unobstructed)
	Power: DC 8V
	Operating Temperature: -10oC ~ +40oC
	Operating Humidity: 85%RH
	Dimension(WxLxH):
	Weight:

Receiver Specification	Frequency: ISM 2,400 - 2,483MHz
	Antenna: Omni-directional antenna
	Channel: 1-4 (Flip-type switch)
	Intermediate Frequency: 480MHz
	Frequency Stabilization: +/- 100KHz
	Demodulation Mode: FM
	Receiving Sensitivity: ≦-85dBm
	Video Output: 1Vp-p@75 ohm, S/N>38dB
	Audio Output: 1Vp-p@600 ohm
	Power:DC 9V
	Operating Temperature: -10oC ~ +40oC
	Operating Humidity: 85%RH
	Dimension(WxLxH):
	Weight:



Packing	Gift Box Size : cm
	Carton Box Size: cm
	1 gift box : 1 Unit
	1 Carton Box :20 sets
	Gross Weight : kg/ carton
	Net weight : kg/Carton
