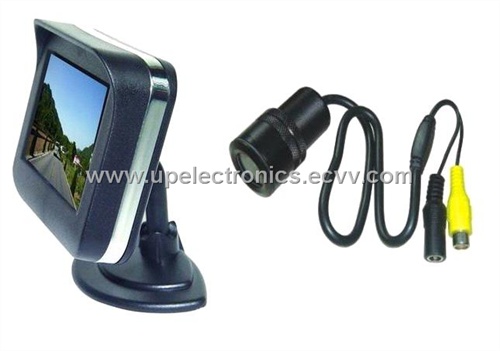

car monitor, camera

Next Product

Detailed Product Description

Monitor

1V input

camera

Image sensor：1/3 COLOR CMOS

Effective pixels：PAL: 628(H)×582(V) NTSC: 510(H)×492(V)

Resolution：420 TVL (Enhanced)

Vertical sync frequency：PAL:50HZ NTSC:60HZ

Minimum lumination：2Lux (IR on)

Lens angle：3.6 mm

Electronic shutter：1/60～1/15000 sec

S/N Ratio：Better than 48dB

White balance：auto

AGC：auto

Sync.system: internal

Video output：1.0 Vpp 75ohm

Operating temperature：-20℃～50℃

Power supply：DC12V

Current consumption：50mA

Dimension：Dia.：25mm Length：45mm

Package dimension：Length×width×height：80×60×50 mm

Weight：0.1Kg
