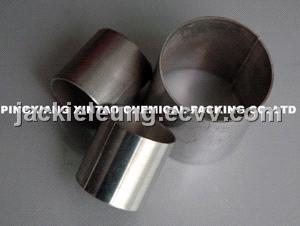

Metal Raschig Ring

Since 1914 when F.Raschig invented this type of ring for tower packing, random tower packing has been developed extensively. The Bridge Raschig Ring is now used in many applications, but particularly in supporting catalyst beds.

XINTAO metal Rasching rings are available in a wide range of carbon and stainless steels.

Technical data

D*H*T (mm)	Surface area (m2/m3)	Free volume (%)	Number per m3	Bulk density (Kg/m3)
16*16*0.3	330	95.1	205000	396
25*25*0.5	216	94.6	55000	432
38*38*0.8	136	94.6	15000	436
50*50*0.8	102	95.9	6500	327
76*76*1.0	57	96.6	1900	276

　　The above data is reference to material stainless steel (AISI304) in the material thickness shown. Other material available: carbon steel, stainless steel including 304, 304L, 410,316, 316L.
