Pingxiang XINTAO Chemical Packing Co.,Ltd

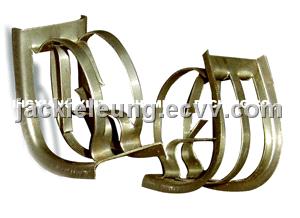

Metal Intalox Saddle
Technical data
D*H*T (mm)
Surface area (m2/m3)
Free volume (%)
Number per m3
Bulk density (Kg/m3)
25*20*0.5
185
96
119047
153
38*24*0.5
140.4
96.8
31654
249.6
50*28*0.8
90.1
97
11160
239.7
76*48*1
57.6
3320
244.7
The above data is reference to material stainless steel (AISI304) in the material thickness shown. Other material available: carbon steel, stainless steel including 304, 304L, 410,316, 316L.
Advantage
A versatile packing used in distillation, absorption and other operations.
Used in both deep vacuum and high pressure towers.
XINTAO metal saddle is high performance random packing successfully used in mass transfer towers both small and large diameter. It is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays.
