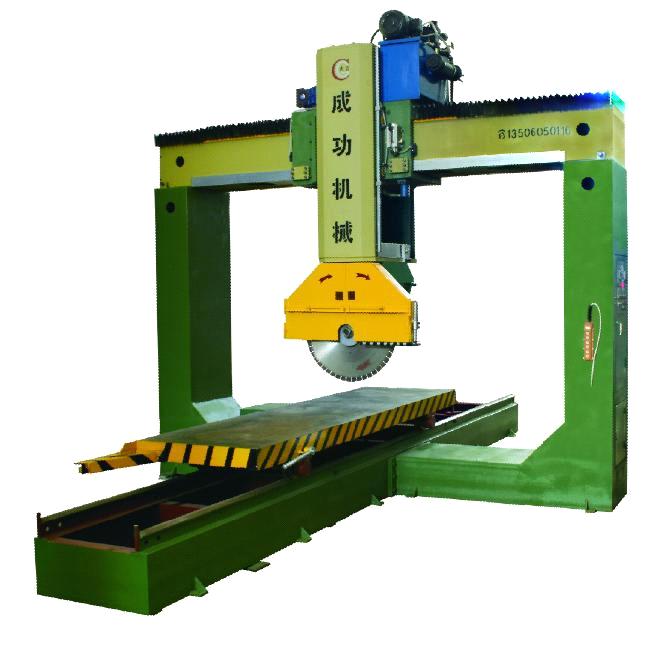

Stone Machine (Gantry-Type Mid Cutting Machine)
The structure is simple and reasonable , its cutting head can be tiltled down by 45 degree,its flexibility operational, accuracy positioning, improved product quality and yield, There are many speed of the machine available for customers to choose, the cutting speed can be arbitrarily adjust. There are automatic and manual controls for users to choose, the up and down and rotation are adopt hydraulic transmission, with less mechanical wear and improve the machinery life span, and reduce production costs.
Max Process spec(L X W XH)
3100mm×800mm×350mm(10.17ft×2.62ft×1.15ft)
Diameter of Sawing Slice
500mm~900mm(1.64ft~2.95ft)
Angle of Blade Rotation
90 o
Spindle Rotate Speed
1870/1630/1420 r/min
Can be adjusted According to the blade
Route of Spindle Lift
550mm (1.80ft)
Speed of Blade Decline
3~30 mm/s
Can be adjusted according to customer needs
Route of Blade Transversely
1600mm(5.25ft)
Speed of Blade Transversely
5~15 m/min
Route of Table
3900mm(12.80ft)
Working Speed of Worktable
Main Motor Power
22 kw
Main Power
27.9 kw
Overall Dimensions(L x W x H)
6000mm×3640mm×3370mm (19.70ft×11.94ft×11.06ft)
Total Weight
5800kg
