FOSHAN HAIHUI METAL PRODUCTS CO., LTD

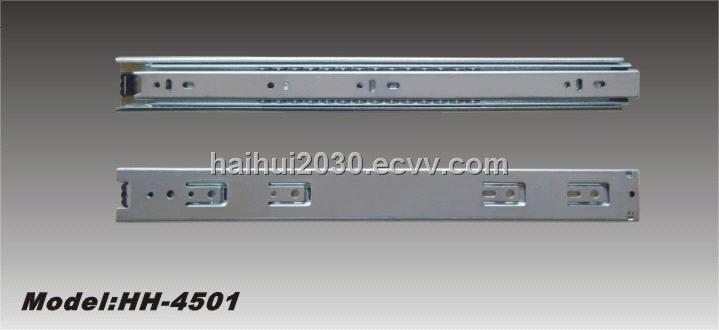

Sell 45mm Full Extension Ball bearing Slide

Detailed Product Description

1.  Model : Telescopic Full Extension Drawer Slide
2.  Mounting : Side, for frame and frameless construction
3.  Height : 1-13/16"
4. Clearance : 1/2" plus 1/32", minus 0 each side
5.  Load Rating : 100 LB.Class (Based on 18")
6.  Material : Electro zinc-plated cold rolled steel.
            Also available in black finish
7.  Action : Telescoping movement on precision steel ball bearings.
          Features 32mm hole pattern with direct access mounting:
          non-handed, trigger disconnect for easy drawer removal.
8.  Optional : 1" over travel
