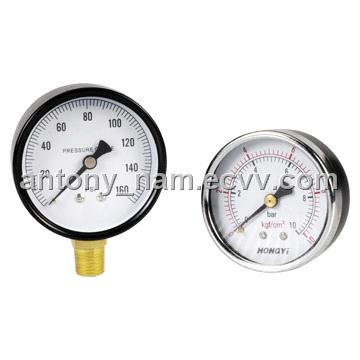

pressure gauge (pressure gauge, manometer)

Application range :
They can be used with gas or liquid media. They are suitable for pneumatic or hydraulic systems, like : compressor, pump, FRL, regulator , spray gun, valve...etc.
Accuracy:
( Options)
2-1-2% ASME B40.1
3-2-3% ASME B40.1 ( 3-2-3% Full scale, manufactured in accored with ASME/ ANSI standard B40.1,1,1985)
General Diameter :
1.5"(40mm), 2" (50mm), 2.5" (63mm), 3"(75mm), 3.6" (90mm), 4" (100mm)
Case :
ABS ( Black )
Enameled steel ( Black )
Steel nickel plated case ( Silver )
Enameled steel case ( black ) with extra nickel plated covered ( silver )
Ambient Temperature: -20C ~ + 60C
Window : PC or Glass
Bourdon tube : Phosphor- Bronze
Pointer: Manganese Steel
Movement : Brass
Connection( to be with Buffer) :
Material - Brass ( yellow ) or brass nickel plated ( Silver )
Size - 1/8", 3/8", 1/4", 3/4", 1/2" M1, ...etc;
Thread - PT, PF, NPT, BSP(G), BSPT, ..etc.
Mounting type :
1. Bottom connection
( = LM, = Lower mounting )


2. Back connection
( = CBM, = Center back mounting )



3. Bottom connection with Flange


Compound gauge -
30"Hg(-76cmHg) ~300 PSI / 20Bar
