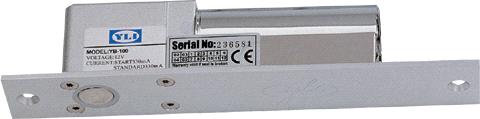

Electric Bolt Lock CSYB100

1.Fail Safe: Locked when energized
2.Face Plate: 205Lx35WX40H(mm)
3.Strike: 90Lx25Wx2H(mm)
4.Bolt: 16mmDIA,stainless steel 16mm throw
5.Voltage: DC12V
6.Start Current: 900mA
7.Standby Current: 150mA
8.Solid Bolt: polishing housing, 800Kg Holding Force
9.Suitable For: Woodeng Door,Glass Door,Metal Door,Glass Door
10.Surface Temp: Low Temperature
11.Induction Distance:8mm
12.Operating temp: -10~+25℃（14-131F）
13.Operating Humidity: 0~90%(non-condensing)
14.Special Designed: Tested to 500000 cycles
15.Face place material：High Aluminum,Carrulous Line Finished
16.Weight: 0.7kg
17.Standard Packing: 30pcs.

Features:

1.The Photoelectricity Controls Technology,Prevent the Trouble of the Machinery
2.Low Temperature, safe & Durable
3.Low Power, Environmental Protection
4.Special Designed Solenoid for Strength and Long Life  with 500000 Operations
5.MOV Provides Reverse Current Protection
6.The Intelligent form Jing Piece is Disposed,Three Magnitudes of Electric Current are Used
7.Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt
8.Suitalble for all Kind of the Door
