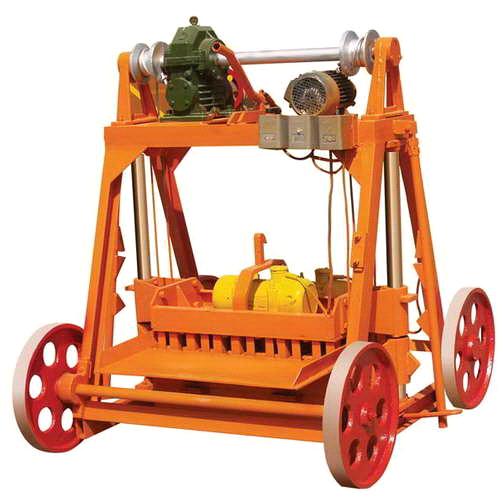

Brick Making Machine

This Machine is manufactured on the base of technical modifications to the original block shaping machines, that is, changing the former one-time-vibration into twice-vibrations of molding core, so, the block density becomes higher, shaping speed quicker and block strength more even, this model of machine can suitable to the customers who have any kinds of ceasing concrete working sites, and the consumption carriage can be reduced.



Maim Technical Specifications:

Product Quantity：400×200×200  4 pieces/mould  2600 pcs/8h

                              400×150×200  5 pieces/mould  3000 pcs/8h

400×120×200  6 pieces/mould  3400pcs/8h

Power：7.4kw

Overall Size：1550×1335×1580mm

Cycle：45S

Vibration Frequency：max.2400r/m

Electrical source： 380V/50Hz

Total Mass：1200kg
