Multi-ribbon (double-layer)shuttleless needle loom(taiwan technology)

Detailed Product Description

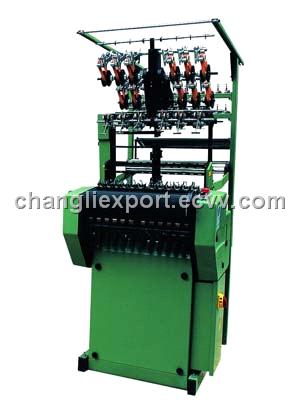

KGF-955W Multi-Ribbon High Speed Shuttleless Needle Loom
Features:
1) The principal axis is started by electromagnetism, it can be operated very conveniently. It is very easy to start or stop, and will never waste any ribbons
2) Equipped with single and double shedding flame, it can change different design ribbons
3) With double hook and double woof, the machine can knit various kinds of complex ribbons and double layer "Z" ribbons
4) Equipped with automatic woof feeding devices, the machine is able to adjust the speed of feeding the woof without stopping the machine
5) With lower noise, the machine can lock the both-sides of the strip very faultlessly.
6) The number of ribbons is multi-ribbons, it can be adjusted according to operators.The motor power is 1.1kW
7) The equipment of tape back winding is convenient and stable, and the machine will stop automatically when the ribbons are enlaced

Main technical data:
Numbers of strips
12
10
8
6
4
Width of textile
15
20
27
45
65
Number of pattern circles
48
48
48
48
48
Weft destiny(lines/cm)
4-37
4-37
4-37
4-37
4-37
Numbers of shedding frame
8-16
8-16
8-16
8-16
8-16
Speed(r/min)
1000/1500
1000/1500
1000/1300
1000/1200
800/1000
Power(KW)
KGF-755S Double-Layer High Speed Shuttleless Needle Loom
Features:
1) Special for knitted strips
2) Double deck knitting, double hook and double woof
3) High production efficiency, easy operation
4) Equipped with automatic woof feeding devices and double speed brake
  motors, it is able to feed the woof without stopping the machine
5) Can move slightly with low speed when adjusting the knit goods
6) Suitable to knit underwear strips, circumference strips and normal zip strips
main tech.data:
Specification of items
16×16
20×16
27×16
45×12
65×8
Number of the knitted strips(strips)
16
16
16
12
8
Max.scope of the reed(mm)
16
20
27
45
65
Woof destiny(strips/cm)
3-40
Number of flanges
12-20
Pattern circles
48
Rotation speed(r/min)
1400
Adjustable speed range of the principal axis
800-2000
1.1
1.1
1.1
1.1
1.1
