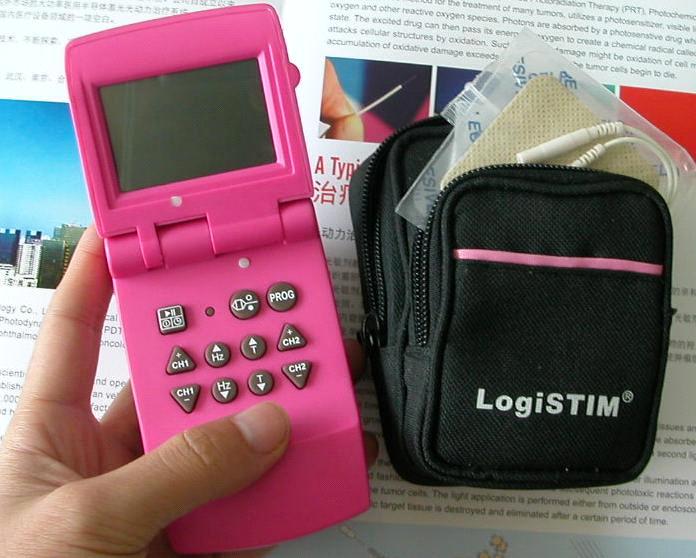

TENS/EMS for Childbirth/Labour Pain Relief

Dual isolated channels
- Vast LCD with operation information
- Digital control panel design, easy-to-operate
- 17 programs available for selection
- Doctor lock facility available
- Pocket size with belt clip, be portable
- Auto shut-off function
- Treatment timer selectable
- High technical outlook design
- High reliability

Specification

Channel: Dual (Isolated channel)

Output:
Max. 130mA (peak value)
Loading: 500 Ohm
Pulse Width: 50μs ~ 400μs
Pulse Rate: 1Hz~ 150Hz
Wave shapes: Rectangular biphasical symmetrical
Rectangular symmetrical alternated

Mode: 4 Manual Modes and 17 Preset Modes are available
Treatment time: Continuous, 10, 20, 30, 45, 60, 90mins
Power supply: 2 Alkaline AA 1.54v(LR6) batteries
