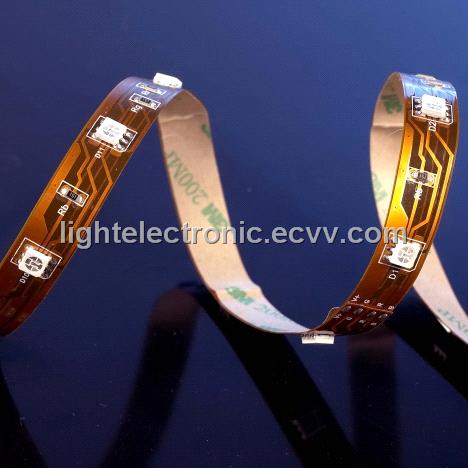

SMD Light Ribbon
Advantages
Linear Separable LED strip on flexible printed circuit board with self-adhensive back
Each unit of 3 LEDs can be cut out at regular segments without damaging the rest ribbon
The connector is being upgraded. We will keep customers to be informed in advance
Applications:
Edge lighting of transparent or diffused materials
Path and contour marking
Illuminating signs
Basic Technical Data:
Standard length: 5 meters/reel or 8 meters/reel (RGB tri-color B)
Ribbon width: single color (8mm), RGB tri-color A (10mm), RGB tri-color B (12mm)
Printed circuit board thickness: single color (0.25mm), RGB tri-color (0.2mm)
Operating voltage: 12VDC
Operating current: single color (2A), RGB tri-color A (3A), RGB tri-color B (4.8A)
Entire ribbon LED quantity: single color (300pcs), RGB tri-color A (150pcs), RGB tri-color B (240pcs)
Size of smallest unit 3 LED (L*W): single color (40mm×8mm), RGB tri-color A (100mm×10mm), RGB tri-color B (100mm×12mm
Assembly Information:
1.Solder
connection should only be performed on designated solder pads (marked
with ±). During soldering, dont exceed the maximum soldering time of 10
seconds and the maximum soldering temperature of 260 Celsius degrees.
2.The smallest unit (50mm or 100mm, 3 LEDs) can be removed by cutting with scissors between the designated solder pads.\
3.The
mounting of the ribbon is facilitated means of double side adhensive on
the back surface of the ribbon. Care must be take to provide a clean
and dry mounting surface, free of oils or silicone coatings as well as
dirty partied. The mounting substrate must have sufficient structural
integrity. Take care to completely remove the adhensive backing. Once
the ribbon is appropriately positioned. Press on the ribbon with about
20N/m2 (refer to application techniques of 3M adhensive tapes)
4.The
minimum bending radius is 2cm. The ribbon may be bent over a smaller
radius of the circuit board containing no electronic components and
such bends should be made once and fixed in position to avoid cyclic
fatigue.
Safety Information:
1. The SMD light ribbon itself and all their components may not be mechanically stressed
2. Assembly must not be damaged or destroyed on some conductive bus of the circuit board
3.Installation
of LED modules (with power supplies) needs to be made with regard to
all applicable electrical and safety standards. Only qualified
personnel should be allowed to perform installations.
4.Correct electrical polarity needs to be observed. Wrong polarity may destroy the ribbon
5.Parallel
connection is highly recommended as safe electrical operation mode.
Serial connection is not recommended. Unbalanced voltage drop can cause
hazardous overload and damage the ribbon
6.Please ensure that the power supply is of adapters power to operate the total load
7. When
mounting on the metallic or otherwise conductive surfaces, there needs
to be an electrical isolation points between ribbon and the mounting
surface
8.Pay attention to standard ESD precautions when installing the ribbon
9.Damaged
by corrosion will not be protection against corrosive agents such as
moisture and condensation and other harmful elements.
