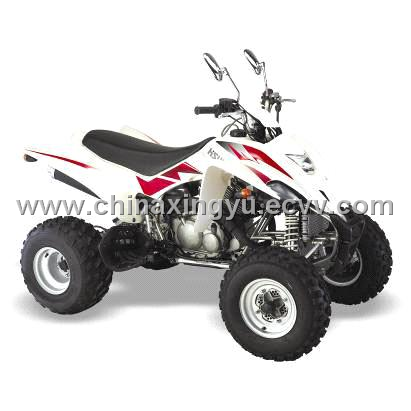

EEC ATV

XY-ATV350EC

ENGINE
Type: 348cc, Oil cooled, 4-stroke, 1-cylinder
Cylinder Size: 83mm x 64.5mm
Compression Ratio: 9.2:1
Max. power: 13.0kw/7000-7500rpm, 17.4HP
Max.torque: 22.5N.m/4000rpm
Carburetion: PD36J
Ignition: CDI
Starting: Electric
Transmission: 1-N-2-3-4-5-6-R
Drive Train: Chain
CHASSIS
Suspension/Front: Independent double swing arm
Suspension/Rear: Single swing arm
Brakes/Front: Dual ventilated hydraulic disc
Brakes/Rear: Ventilated hydraulic disc
Tires/Front: AT21 x 7-10 radial
Tires/Rear: AT20 x 10-9 radial
DIMENSIONS
L x W x H: 1760mm x 1110mm x 1180mm
Seat Height: 830mm
Wheelbase: 1230mm
Ground Clearance: 250mm
Fuel Capatity: 9.0L
Dry Weight: 194kg
Loading Quantity: 12pcs/20'GP; 24pcs/40'GP; 36pcs/40'HQ
OTHER
Lighting: 12V35W/35W x 1, 12V 5W x 1(front); turning light 12V10W x 4(F&R); 12V.5W/21W x 1(rear)
