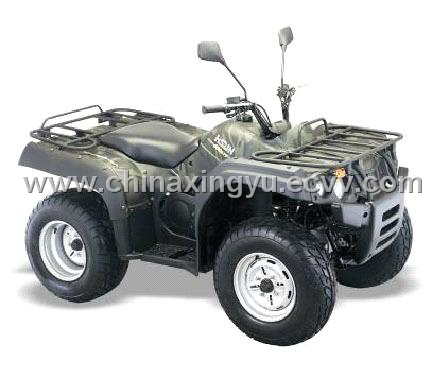

eec atv

XY-ATV400EC-2

ENGINE
Type: 387cc, Oil cooled, 4-stroke, 1-cylinder
Cylinder Size: 83mm x 71.6mm
Compression Ratio: 9.5:1
Max. power: 12.5kw/7500rpm, 16.8HP
Max.torque: 19.5N.m/4000rpm
Carburetion: PD33J
Ignition: CDI
Starting: Electric/pull start
Transmission: F-N-R
Drive Train: Axle
CHASSIS
Suspension/Front: Independent double swing arm
Suspension/Rear: Single swing arm
Brakes/Front: Dual ventilated hydraulic disc
Brakes/Rear: Ventilated hydraulic disc
Tires/Front: AT25 x 8-12 radial
Tires/Rear: AT25 x 10-12 radial
DIMENSIONS
L x W x H: 1930mm x 1045mm x 1130mm
Seat Height: 827mm
Wheelbase: 1260mm
Ground Clearance: 245mm
Fuel Capatity: 15L
Dry Weight: 262kg
Loading Quantity: 12pcs/20'GP; 24pcs/40'GP; 36pcs/40'HQ
OTHER
Lighting: 12V35W/35W x 2, 12V5W x 2(front); turning light 12V10W x 4(F&R); 12V.5W/21W x 1(rear)
