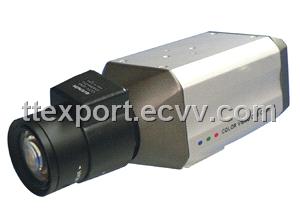

CCTV CCD Gun Camera

Color 1/3 SONY SUPER HAD CCD DSP
Pixels: PAL=500(H) x 582(V),NTSC=510(H) x 492(V)
TV system: PAL/NTSC
Sensitive area:4.8x3.6(mm)
Syn. system: Internal
Resolution:420TV Line
Min illumination:0.5Lux/F1.2
S/N: More than 48dB(AGC off)
AGC: On/off
BLC: On/off
AWB: Auto tracing AWB1,AWB2,AWB3
Electronic shutter: PAL=1/50-1/100,000 sec.
Auto iris: Video/DC driver
Video output: BNC 1.0Vp-p 75ohm
Audio output:1Vp-p/600 Ohm
Power supply:DC12V
Lens mount: C/CS optional
Dimension: 47(H)x132(L)mm
Operating temp.:-10 to +50 centigrade degree
Storage temp.:-20 to +60 centigrade degree
