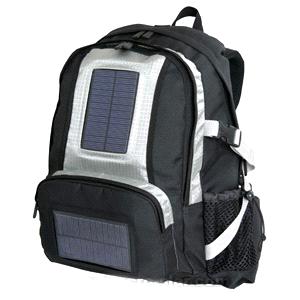

Solar Backpack
The Macro solar bags are mobile power generators, designed to charge your devices without tying you to a power outlet, which makes them ideal for traveling and camping.It combines by four parts: bag + solar cell panel + battery box + adapters Solar bag can recharge most small electronic devices including: cell phones, cameras, PDA’s, GPS, PSP games player and MP3s. Note: it is not designed to charge laptops. The bags come with a set of standard adapters for common cell phones and other devices. We also offer a full range of optional adapters. Embedded in the outside of the bags are three lightweight, tough, waterproof solar panels which generate up to 2.7 - 4 watts of power. This means quicker charge times!Included with each bag is a Li Ion battery pack which stores any surplus power generated, so it is available when you need it not just when the sun is up. The battery pack can also be charged using an AC travel charger or car charger (both included). It means you don't need to bring different adapters again for different electronic devices if you have one solar system in the bag.
Specifications of Battery Box
Output Voltage
DC 5.5V(max)
Battery Capacity
3.7V 2200mAh(max)
Output Current
650 mA(max)
Charge Time
Solar Charge: 5-6 hours
AC/DC Charge: 3-3.5 hours
LED Light
15000mcd
Charge Display
Charging In
Full Charged
red
green
Battery Type
Li-Ion
Weight
70g
Dimensions
83*35*22mm
Specifications of Solar Cell Panels
Single Panel
Total Panels
Panel Dimensions
180mm x 130mm
X1
4 ounces120 grams
8 ounces240 grams
Substrate Type
1.2mm Hard PCD
Substrate Color
Green
Cell Type
Monocrystalline
Cell Efficiency
15.50%
Open Circuit Voltage
7.20 V
Peak Voltage *
6.00 V
Peak Current *
450 mAH
Peak Watt
2.70 W
*Panel output is computed from cell manufacturer's data based on 0% reduction of cell efficiency after packaging of cell strings. Electrical output tolerance is +/- 10%.
Approximate Charging Times
Item
Hours Direct Sunlight *
Cell Phone
1-2 hours
Digital Camera (below 6 V)
1.5-3 hours
iPod
1-1.5 hours
PDA
* Charge times may be increased in cloudy weather, high temperatures, or where panels are not angled towards the sun.
