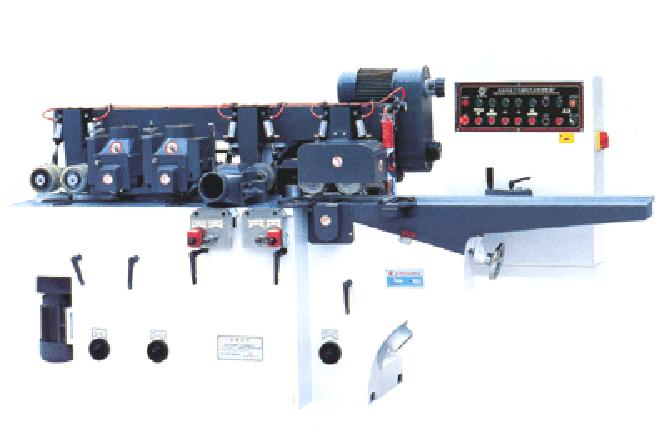

Four Side Planner & Moulding Machine

Detailed Product Description

Capacity: Planning width:20 ~ 120 mm

Capacity: Planning thickness:8 ~ 100mm

Capacity: Feeding speed:5 ~ 20 m / min

Spindle: Spindle speed:6,000 rpm

Spindle: Spindle dia.:?40 mm

Cutter diameter: First bottom :horizontal spindle?100 ~ 120 mm

Cutter diameter: Right / left vertical spindle:?100 ~ 130

Cutter diameter: Top horizontal spindle:?100 ~ 130

Motor power: Bottom horizontal spindle:2．2kw

Motor power: Right / left vertical spindle (1PC):2.2kw

Motor power: Top horizontal spindle:3kw

Motor power: Feed horsepower:1.5kw

Motor power: Elevate horsepower:0.55kw

Others: Machine dimension (L x W x H):2,145 x 1,060 x 1,400 mm

Others: Net weight:1,500 kgs
