Discription

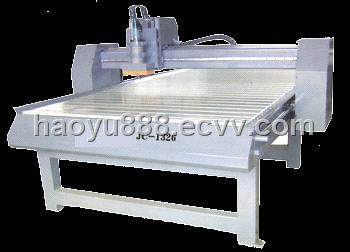

This is a simple auto-tool changer CNC router for wood working. It can save the time to change the tools. It is more convenient to the wood working factory to make different designs.
It is servo (Yaskawa) system and with vacuum system.
Parameter :
1,X,Y,Z Working Area: 1260x2500x200mm
2,Table Size: 1320×3040mm
3,X,Y,Z Traveling Positioning Accuracy: ±0.04/300mm
4,X,Y,Z Repositioning Positioning Accuracy: ±0.05mm
5,Table Surface: Vacuum system
6,Frame: Steel Tubes
7,X, Y Structure: Rack and PInion Drive,Hiwin Rail Linear Bearings
8,Z Structure: Ball Screw, Hiwin Rail Linear Bearings
9,Max. power Consumption(Without spindle) : 5.0Kw
10,Max. Rapid Travel Rate : 32000mm/min
11,Max.Working Speed: 20000mm/min
12,Spindle Power Motor: 8.0Kw HSD Air cooling Spindle
13,Spindle Speed: 6000-18000RPM
14,Drive Motors : Yaskawa Servo Motors and Drivers
15,Working Voltage: AC380V/50/60Hz (Option:220v,3PH)
16,Command Language: G Code
17,Operating System: DSP System
18,Interface: USB
19,Flash Memory: 128M (U Disk)
20,Collet: ER25
21,X,Y Resolution : <0.01mm
22,Software Compatability : Type3 software, Wentai software,Artcam software
23,Running Environment : Temperature: 0℃～45℃,
Relative humidity: 30%～75%
24,Packing Size: Separated: 3200X1960X1340
Integrated: 3700X1960X1870mm
25,Net Weight: 1050KG
26,Gross Weight: 1300KG
