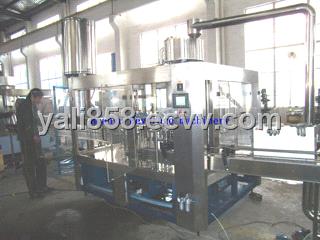

Beverage filling machine Usage:
The series equipment is used for hot filling and sealing of green tea, black tea, wulong tea and fruit juice. The machine integrates washing, filling, capping together. The design is scientific and reasonable. Its appearance is beautiful. Its operation and maintenance is convenient. The automation is high. It is good equipment for choosing hot drink filling machine.
This series machine is adopt block bottle-neck hanging work state design, and be adopt filling valve rise-drop design, It's be satisfy for 95 degree hereinafter hot filling technology demand. It's adopt person-machine interface touch-screen, PLC, transducer etc advanced control technology. It's osculant the drink material parts are adopt the SUS304 stainless steel, The machine main motor, reducer, mostly axletree, pressurize parts and electricity ware element, gas drive element etc are adopt famous international manufactruer products.
Main Technical Specifications
Model RCGF16-12-6 RCGF16-16-6 RCGF18-18-6 RCGF24-24-8 RCGF32-32-10
Production capacity (500ml)(b/h) 3000-4000 4000-5000 5000-6000 6000-8000 8000-10000
Filling precision 1%(Liquid Level)
Polyester bottle standard(mm) (Bottle Diameter): Φ50-φ100; (Height): 150-310
Suitable cap shape Plastic Screw Cap
Water pressure of washing bottle(MPa) 0.2-0.25
Wash bottle consumption water (kg/h) 800 1200 1500 1800 2400
Spraying position 5 5 6 8 12
Dripping bottle position 3 3 3.5 4 7
Gas source pressure(MPa) 0.6
Gas consumption(m3/min) 0.1 0.1 0.4 0.4 0.5
Power(kw) 2.2 2.2 3.75 4 5.6
Weight(kg) 2500 3000 3500 4500 6000
Dimension(LxWxH)(mm) 2350x1610x2250 2350x1750x2250 2480x1960x2250 3010x2180x2400 4000x2200x2500
| FOB Price: | USD21500-70000FOBShanghai,China |
