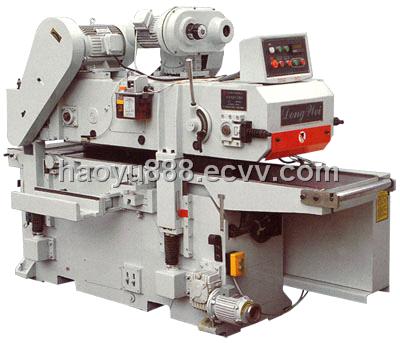

sell Top & bottom planer

Detailed Product Description

Max.workpiece width ：400mm

Max.workpiece thickness：120mm

Min.workpiece length：300mm

Min.workpiece thickness：10mm

Max.upper cutter planing capacity：7mm

Max.lower cutter planing capacity：5mm

Spindle speed：5000r/min

Spindle cutting diameter：112mm

Feeding speed：5-20m/min

Upper cutter motor：7.5kw

Lower cutter motor：4kw

Feeding motor：2.2kw

Lifting motor：0.75kw

Net.weight：2400kg

Overall dimensions:2500×1210×1630mm
