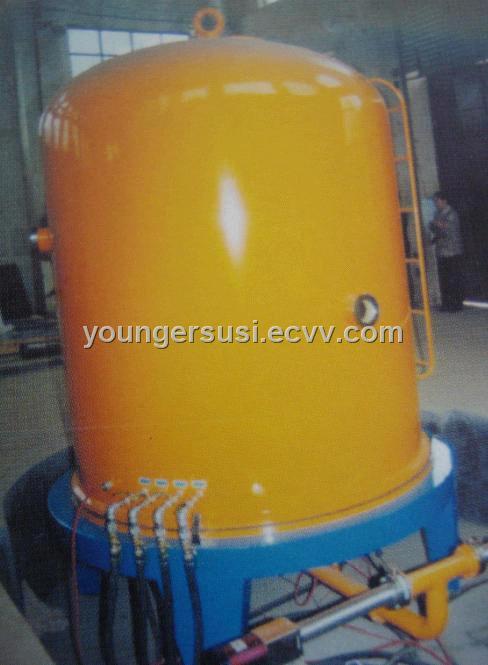

plasma ion nitriding furnace

Detailed Product Description

1. LDMC-30E IMPULSE ION NITRIDING FURNACE COMSIST OF:

Equipment consist of electric control system, vacuum furnace body,vacuum generater and preserve system, air supply adjust system and so on.

2. MAIN TECHNICAL PARAMETERS AND FEATURES OF ELECTRIC CONTROL SYSTEM:

1).Main parameters

LDMC-30E IMPULSE POWER SUPPLY MAIN TECHNICAL PARAMETERS

ITEM	PARAMETERS
MAX OUTPUT PEAK CURRENT	60A
MAX OUTPUT AVERAGE CURRENT	30A
OUTPUT VOLTAGE	0-1000V CONTINUOUS ADJUSTABLE
FREQUENCY	1KHZ
CONTROL TYPE	FIXED REQUENCY WIDTH ADJUSTABLE
OUTPUT WAVE	RECTANGLE SQURE WAVE
ARC FINISHED SPEED	≤20 MICROSECOND(US)
OCCUPY EMPTY PERCENTAGE	0-85% CONTINUOUS ADJUSTABLE
TEMPERATURE CONTROL	PRE-SET TEMPERATURE ON TOUCHSCREEN, AUTO-CONTROL, PID CONTINUOUS ADJUSTMENT, 4-20mA OUTPUT
TEMPERATURE CONTROL PRECISION	±1℃
PRESSURE CONTROL	PRE-SET PRESSURE ON TOUCHSCREEN, AUTO-CONTROL, PID CONTINUOUS ADJUSTMENT, 4-20 mA OUTOUT
PRESSURE CONTROL PRECISION	±1Pa

FOB Price:	USD40000-60000Foshan
Other Price Terms:	tt.lc
