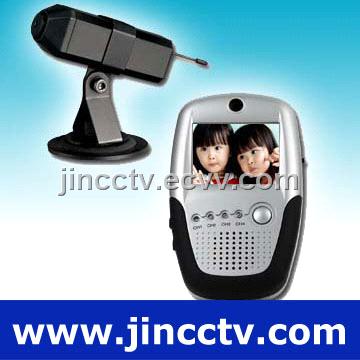

2.4G Wireless CCD Camera with Palm Baby Monitor

Prev Product

Next Product

Detailed Product Description

Product name: Baby Monitor(JN-830D)

(1)2.5" TFT-LCD with 640X240 resolutions
(2)Built-in rechargeable Li-battery in camera
(3)Rechargeable Li-battery in receiver
(4)Built-in microphone for audio monitoring
(5)4 channels optional to avoid possible interference
(6)Up to 100m (330ft. ) transmission range in open space

Item		Value
GENERAL	Transmission Frequency	ISM 2,400~2,483 MHz
	Transmission Power	10mW/CE; 2mW/FCC
	Operating Frequency	2414MHz;2432MHz;2450MHz;2468MHz
	Unobstructed Effective Range	100m(Min.)
	Modulation Mode	FM
	Operating Temperature	-10 ~ +50(Degree C) / +14~ +122(Degree F)
	Storage Temperature	-20 ~ +60(Degree C) / -4 ~ +140(Degree F)
	Operating Humidity	≤85%RH
CAMERA	Imaging Sensor Type	CMOS
	Picture Total Pixels	PAL:628×582 Pixels; NTSC: 510×492 Pixels
	Horizontal Resolution	380 TV Lines
	View Angle	PAL:60°; NTSC:40°
	Minimum Illumination	5Lux
	Li-battery Charge Time	2hours
	Li-battery Working Time	5hours
	BandWidth	18M
	Power Supply	DC +5V
	Dimensions(W×D×H)	236623mm
	Weight	32 g
RECEIVER	LCD Screen Type	2.5 inches TFT-LCD
	Effective Pixels	640×240
	Receiving Sensitivity	≤-85dBm
	Video System	NTSC/PAL
	Color Configuration	R.G.B.delta
	Intermediate Frequency	480MHz
	Li-battery Charge Time	2~3 hours
	Li-battery Working Time	2 hours
	Consumption Current	350mA(Max.)
	Power Supply	DC +5V
	Dimensions(W×D×H)	8038130mm
	Weight	160 g

Post Date:	6/23/2008
Expiry Date:	6/18/2009
