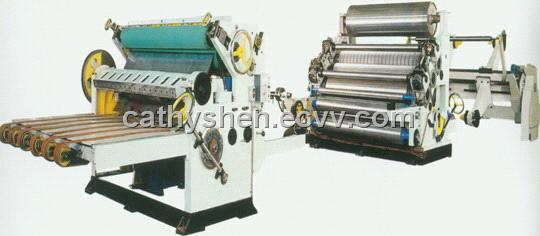

DWJ60-1600 WARP BOARD PRODUCTION LINE

General Specifications:
1、Speed, Maximum：60 m/min
2、Effective Width：1600 mm
3、Flute Type：E flute .
4、Steam Consumption：350 kg/h.
Steam pressure：1.1-1.2 MPa.
5、Power requirement：～ 35 KW ，～380V, 50HZ
6、Single facer machine, approximate overall length： ~14 m
7、 Note: Buyer confirm the flute as below specification:(necessary)
Flute type：　　Type
Flute Height：　MM
