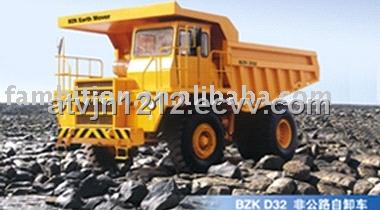

Offroad dump truck

Model No: BZKD32
N.V.W.  :21000 KG

Payload :32000 Kg

G.V.W.:53000 kg

Overall dimension: 7496x3710x3670 mm

Wheel base:3350mm

Track      Front:: 2680mm    Rear: 2350mm

Top speed: 50km/h

Max Gradeability: 35%

Min.turning radius: ≤8.5 m

Engine       Model: Cummins M11-C330

             Max power: 246kw/2100r/min

             Max torque: 1458Nm/1300r/min

Transmission  Eaton MRT-12710B

Rear axle    With wheel hubs reductions    Total ratio: 11.86:1

Steering: Full hydraulic steering system   Working pressure: 12.25 MPa

Brakes: Double circuits, pneumatic control brakes system    Working pressure:690-820Kpa

Body hoist: Tipping and falling time≤22 sec

Body capacity   Struck:15.87 m3            Heaped(SAE 2:1):21m3

Tyres:1800-25

Electrical system:Voltage 24V
