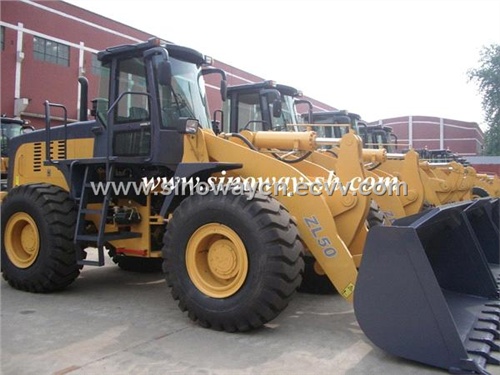

Sinoway wheel loader SWL50F

Detailed Product Description

Seq.	Item		Spec.
1	Rated bucket capacity，m³		3
2	Rated load，kN		50
3	Operating weight，kg		16500
4	Max. dump clearance，mm		3200
5	Dump reach，mm		1180
6	Wheel base，mm		3250
7	Tread，mm		2240
8	Min. ground clearance，mm		440
9	Body turning，(°)		37
10	Overall length，mm		7935
11	Height(To the top of the cab)，mm		3450
12	Bucket width，mm		2956
13	Distance from rear axle to hinge joint，mm		1625
14	Rear overhang，mm		1830
15	Departure Angle(°)		30
16	Dumping angle(°)		45
17	Max. rollback(°)	Ground	49
		Fully raised	60
18	Carrying height，mm		500
19	Max. Traction ，kN		160
20	Bucket turning radius on carrying position ，mm		6770
21	Grade ability，(°)		28
22	Tipping Load，kN		109
23	Maximum excavating force，kN		162
24	Working Equipment operation time s	Rated load lifting	5.7
		Unload lowering	3.6
		Bucket Pitch	1.3
25	Multi-way valve	Model type	DF32.2C
		Structure feature	Dual valve, mechanical operation
26	Engine	Model/Maker	6CTA8.3-C215/Cummins
		Type	In-line, water cooled、four stroke, Direct injection
		Rated Power，kW	160
		Rated Speed，r/min	2200
27	Hydraulic system of Working Equipment	Working pressure，MPa	18
		Pump/Maker	CBGj3100C/Jinan Hydraulic Pump Manufacturing
		Pump displacement，ml/r	100

Seq.	Item				Spec.
27	Hydraulic system of Working Equipment			Boom Cylinder，mm	2-φ160X788
				Bucket cylinder，mm	1-φ180X250
28	Converter			Type	WG180, countershaft
				Maker	Hangzhou Advance Gearbox Group
				torque ratio /Cooling type	2.525/Hydraulic Circling
29	Transmission				Countershaft electronic -hydraulic controlling
30	Tyres				23.5-25
31	Tyre pressure，MPa Front/Rear				0.28～0.32
32	Travel Speed km/h		Forward Ⅰ		0～6.736
			Forward Ⅱ		0～12.053
			Forward Ⅲ		0～24.466
			Forward Ⅳ		0～39.05
			ReverseⅠ		0～6.736
			Reverse Ⅱ		0～12.053
			Reverse Ⅲ		0～24.466
			Reverse Ⅳ
32	Transmission Type / Reducing ratio				spiral bevel gear,1^st reduction /4.625
34	wheel reduction / Reducing ratio				spur gear , planetary/4.94
35	Foot brake type/Braking pressure，MPa				Dual line air over hydraulic disc brake, four wheels/0.784
36	Hand brake type				Drum brake
37	Steering system	Working pressure，MPa			16
		Steering pump			JHP2080
		Pump maker			Jinan Hydraulic pump manufacturing
		Pump displacement ，ml/r			80
		Steering gear maker			ZHENJIANG HYDRAULIC COMPONENT MFG.CO.,LTD
		Steering Cylinder，mm			2-φ90X485
