17 Inch LCD Advertising Player DPF-172

Detailed Product Description

Advertising Player > LCD Advertising Player > 17 Inch LCD Advertising Player

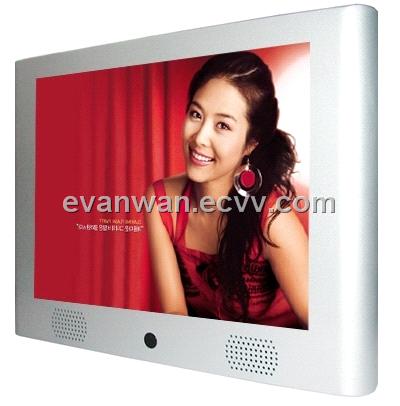

17 Inch LCD Advertising Player DPF-172

17' LCD Digital Media Player
  Introduction

DPF-172 is a digital media player that plays MPEG I/II/IV movies and MP3 audio and digital pictures without a computer. It integrated 4-in-1 multimedia-cardreader. You can display single-photos as well as playing back complete slideshows.By connecting to Video and Audio out, you can play slides, movies, MP3 on TV, projector or Plasma Display Panel (PDP) for Business, Education, Seminar, Presentation and Home Entertainment.


  Main Features

  • Single-chip digital audio and video decoder processor
  • Support multiple file formats: JPEG, MPEG I/II/IV.AVI, MP3. DivX (ver 3.11,4.0,5.0 and higher)
  • Support Card type: Compact Flash Type I / II . MS.MMC.SD Card
  • Support OSD language: English, French, German, Italian , Swedish, Japanese, Portuguese, Spanish
  • Video input Format: NTSC and PAL
  • Support 4 segment timing OFF/ON Function
  • Support current date setting function
  • Support Designate folder and file type Player ( you can select any photos or video programs to favorite folder circle playing only )
  • Transit Remote control adjust Panel Brightness/Contrast/Color
  • SLIDE SHOW (13 kinds EFFECT): with sequential and random
  • SLIDE TIME (INTERVAL) mode: interval time with 1,3, 5,10 seconds and menu selection
  • MUSIC SLIDE show: MP3 with JPEG pictures play on the same time
  • JPEG Pictures: ZOOM IN/OUT
  • File List : file directory management
  • Includes Full functions Infrared remote Control
  • LCD OSD support: Brightness, Contrast, H/V Position, Color, Phase, ClockManagement
  • Timer module ( optional ) , automatically power ON/OFF timing setting every day
  • Motion sensor ( optional ) to control audio ON/OFF
  • DC in module ( optional ) , Adaptable for use in Car, Truck, Boat with a special design
  • USB 2.0 update version ( optional )
  • *support usb memory sticker read function
  • *able to copy files from USB storage device to CF card( with encryption )
  Specifications

Screen Size

Screen Size

17"

Display Type

SXGA

Screen resolution (Pixels)

1280*1024

Brightness

350 nits

Contrast Ratio

700: 1

Pixel Size

0.264*0.264

Maximun Color

16.7M

Viewing angle ( L/R ,U/D )

89/89 ,89/89

Response Time

8 ms

Power Consumption

21.9Watts

Back light MTBF

50,000 hrs.

Compatible Memory Card

Compact Flash Type I/II (CF)

Yes

Secure Digital (SD) Card

Yes

Memory Stick (MS)

Yes

Multi Media Card (MMC)

Yes

USB Memory Sticker

Optional

Compatible File Format

JPEG

Yes

MP3

Yes

Motion JPEG (avi.)

Yes

MPEG-1

Yes

MPEG-2

Yes

MPEG-4 (D1 resolution)

Yes

Connectivity

USB

Optional

AV Input

Yes

AV Output

Yes

Audio Output

Yes

Features

Built in Speaker

Yes ( 2x 2w stereo speaker )

OSD Adjust switch Button

Yes

Automatic Slide Show

Yes

Music background

Yes

Language Support

8

Loop Zoom

Yes

File Name/Size/Data Display

Yes

Slide Show/Interval Setup

Yes

Designate folder and file type Play

Yes

Play/Pause/Stop/Volume/Mute

Yes

File Copy Function

only USB update version support

Memory card with Security Cover

Yes

Power Supply

internal ( 12V/3A 36 Watts )

Timer

Optional

Motion Sensor

Optional

DC in Power

7V-28V DC input

Accessories & Others

Remote Control

Yes

Audio Cable

Yes

AV Cable

Yes

Power Cable

Yes

Certificate

CE/FCC/ROHS

Warranty

One Year

Frame Material

Aluminum with Silver color painting

Dimension & Weight

Frame (W) x (H) x (D) mm

420 * 355 * 61 mm

Net Weight (kg)

6.1Kg

Gross Weight (kg)

8.1Kg

Packing Dimension (W) x (H) x (D) mm

530 * 470 * 170 mm


  Ordering Information

DPF-172

17" LCD Digital Media player

DPFU-172

17" LCD Digital Media player , with USB update function
