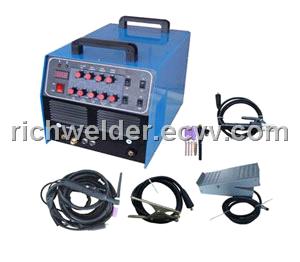

AC/DC pulse welder(WSME-200)

AC/DC pulse welder(WSME-200)

Detailed Product Description

TYPE	AC/DC-200(WSE-200)
Power voltage	AC220V±10% 50/60Hz
Rated input current	20.7A
Power capacitance	4.6KVA
Rated output current	200A
Range of output current	10-200A
No-load voltage	56V
Working voltage	18V
Pre-flow (S)	0-2
AC output frequency(Hz)	50-60HZ
Clean width (%)	20-80
Slop-down time (S)	0-5
Tail-gas time (S)	2-10
Remote control	YES
ARC-leading	HF vibration
Efficiency (%)	85
Rate duty cycle (%)	60
Power factor	0.93
Insulation class	B
Protection class	IP21
Weight (kg)	30
Size (mm)	493×330×320
Max welding thickness (mm)	1-10
