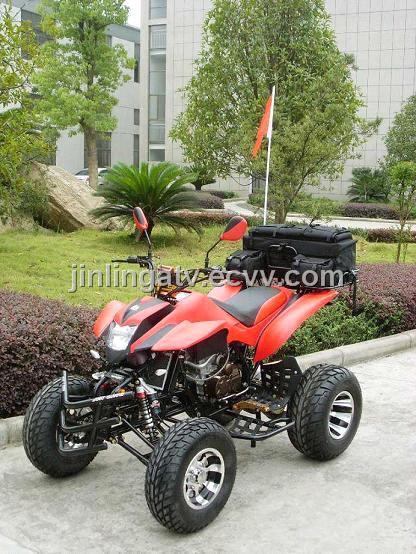

EEC ATV (JLA-21B) ATV 250cc water cooled

Detailed Product Description

EEC Cert No: e42002/241914*00
250CC,Water Cooled Engine
Aluminium Wheel
LCD Speedmeter
LED Indication Light
Best Air Chamber Absorber
Two Persons Ride EEC Approved
1. Engine type:250cc, 4 strokes, water cooled
2. Bore and stroke:72x 69
3. Compression rating: 9.2:1
4. Max. torque:17.5N.m / 5000rpm
5. Max. power:15kW / 7500rpm
6. Ignition type: CDI
7. Transmission: manual clutch, 4-speed, reverse gear, chain
8. Brake (front / rear): disc / disc
9. Starting system: electric start
10. Battery spec: 12V, 9AH
11. Front suspension details: double A x swing arm, air chamber shock absorbers
12. Rear suspension details: air chamber absorber
13. Front tire spec: 21 x 7 - 10
14. Rear tires spec: 20 x 10 - 10
15. Vehicle dimensions: 180 x 110 x 125cm
16. Wheel base: 117cm
17. Seat height from ground: 90cm
18. Ground clearance: 120mm
19. Load capacity: 370kg
20. Fuel tank capacity: 5.4L
21. Gross weight in carton: 190kg
22. Net weight: 170kg
23. Packing size: 148 x 84 x 88cm


Conveyance:
Qty/ 20' GP: 20 units
Qty/ 40' GP: 42 units
Qty/ 40' HQ: 63 units
