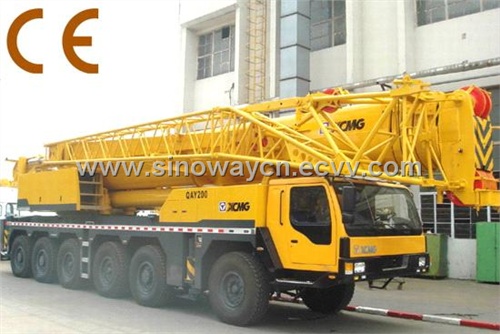

Sinoway all terrain crane QAY200

Detailed Product Description

Item	Unit	Parameter
Total mass in travel state	kg	72000
Overall length for travel	mm	16200
Overall width for travel	mm	≤3000
Overall height for travel	mm	≤4000
Chassis length	mm	14240
Max. travel speed	km/h	71
Min. stable travel speed	km/h	2
Drive type		12×6
Steering type		12×10
Approach angle	°	≥25
Departure angle	°	≥17.8 (24)
Max. grade-ability	%	≥55
Carrier engine rated output	kw/rpm	380/1800
Superstructure engine rated output	kw/rpm	162/2100
Outrigger type		Double H
Outrigger span(longitudinal×lateral )	mm	9625×8700
Min. turning diameter	mm	≤23000
Max. rated lifting capacity	kg	200000
Jib max. lifting capacity	kg	12000
Min. rated working radius	m	3
Max. load moment	kN .m	6350(9m×72t)
Boom elevation	°	0～82
Boom length	m	13.8
Fully extended boom length	m	61
Base boom lifting height	m	14.5
Fully extended boom lifting height	m	59.5
Jib length	m	11.55、 20
Swing speed	r/min	0～2
Single rope hoist speed	m/min	0～120
