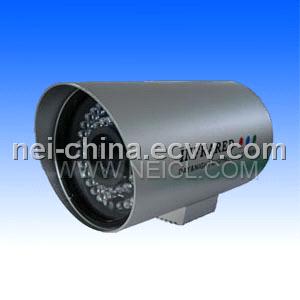

IR Waterproof Camera (NEI-IR506)

Technical parameters:
(1). Image Sensor: 1/4" or 1/3" Sharp or Sony CCD
(2). Signal System: PAL/NTSC
(3). Video Output: 1.0Vp-p/75ΩBNC
(4). Scanning: 2: 1
(5). Horizontal Resolution: 420, 480, 520TVL
(6). Min Illumination: 0 LUX(LED on)
(7). IR LED: F5, 48pcs
(8). IR Wave Length: 850nm
(9). IR Distance: 40M
(10). S/N Ratio: ≥48dB
(11). Character: =0.45
(12). Synchronization System: Internal
(13). AGC Control: Auto
(14). BLC: On/Off
(15). W/B: Auto
(16). Power: DC12V
(17). Current: ≥380mA(LED On)
(18). Lens: (4mm, 6mm, 8mm, 12mm, 16mm) Optional
(19). Operation Environment: -5º C~+50º C
