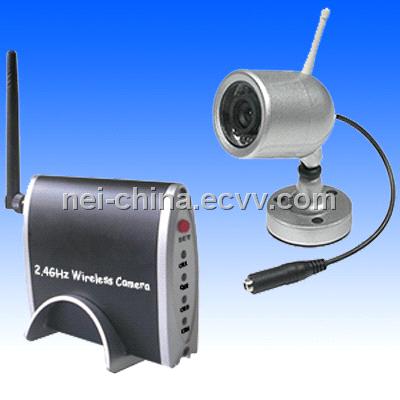

2.4GHz USB Wireless Camera Kit (NEI-ZC812X+ZR709U)

Features:
* Dual Output Mode: USB for PC and AV for TV/Monitor
* Built-in microphone for audio monitoring
* High speed MPEG 4 compression, support real time image output
* 4-channel operation allows multiple (1-4) camera systems (optional)
* Long operation range: up to 100 m clear line of sight or 30 m throug walls/ceilings
* Camera with AC or Battery operated for portability
* Compact, Lightweight and Super Mini size
* Swivel bracket included for wall /ceiling mounting
* Supports Windows 98/2000/XP MSN Messenger
* Built-in Infra-Red LED (11X): Color during day, Nightvision (B&W) at night
* This receiver not only have auto-scan channel function but also have skip channel function.

Specifications:
Camera Specification:
 Frequency: ISM 2, 400 - 2, 483MHz
Imaging Sensor: 1/3 inch OMNIVISION Color CMOS
Horizontal Resolution: 380TV Line
CMOS Total Pixels: 628 x 582 (PAL) / 510 x 492 (NTSC)
View Angles: Built-in 11IR LED, 62°
Minimum Illumination: 0Lux / F1.5
Gain Control: Automatic
Transmission Power: 10mW
Consumption Current: 80 mA
Modulation Mode: FM
Bandwidth: 18M
Operating Range: 30m/100m (Obstructed / Unobstructed)
Power: DC 9V
Operating Temperature: -10º C ~ +40º C
Operating Humidity: 85%RH
Dimension(WxLxH): 44x44x56 mm
Weight: 200g

Receiver Specification:
 Frequency: ISM 2, 400 - 2, 483MHz
Antenna: Omni-directional antenna
Channel: 1-4 (Flip-type switch)
Intermediate Frequency: 480MHz
Frequency Stabilization: +/- 100KHz
Demodulation Mode: FM
Receiving Sensitivity: <-85dBm
Video Output: 1Vp-p@75 ohm, S/N>38dB
Audio Output: 1Vp-p@600 ohm
Power: DC 5V
Operating Temperature: -10&ordm; C~ +40&ordm; C
Operating Humidity: 85%RH
Dimension(WxLxH): 80x68x16 mm
Weight: 200g


Standard Package Content:
- 2.4GHz Wireless Outdoor Camera with IR and Microphone
- 2.4GHz Wireless 4-channel USB Receiver
- Antenna for Receiver
- AV cable & USB Cable
- 12V Power Adaptor for Camera
- 5V Power Adaptor for Receiver
- Driver and Application Software CD
- Swivel Bracket for Camera

Packing:
Gift Box Size: 18x8.0x19.5 cm
Carton Box Size: 43x38x41 cm
1 gift box: 1 Unit
1 Carton Box: 20 sets
Gross Weight: kg/ carton
Net weight: kg/Carton
