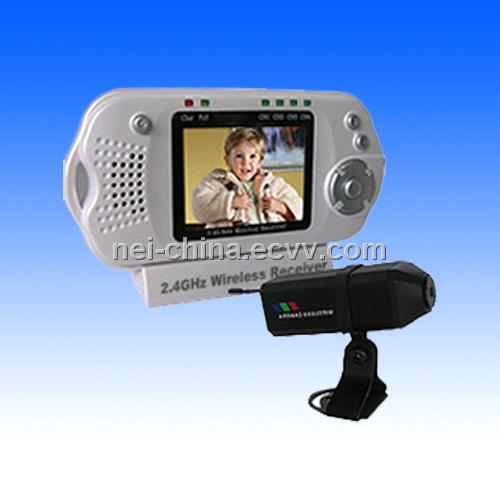

2.5" TFT LCD Monitor with Built-in 2.4GHz 4-Channel Receiver(NEI-ZC806+ZR325C)

Features:
* 2.5" TFT LCD Monitor with built-in 2.4GHz 4-Channel Receiver
* High quality Color CMOS sensor for crisp, clear images
* Built-in microphone for audio monitoring
* 4-channel operation allows multiple (1-4) camera system (optional)
* Manual or Auto Scan between selected channels (1-4)
* Long operation range: up to 100 m line of sight or 30 m though obstructions (walls/ceilings)
* both the camera and monitor build in rechargeable li-battery.
* the monitor made as MP4 pattern, it is very light and portable.
* Compact, Lightweight and Mini size camera
* Swivel Bracket included for adjustable viewing angles
* Easy to install: wall /ceiling mountable

Specifications:
Camera:
Frequency: ISM 2, 400 - 2, 483MHz
Imaging Sensor: 1/3 inch OMNIVISION Color CMOS
Horizontal Resolution: 380TV Line
CMOS Total Pixels: 628 x 582 (PAL) / 510 x 492 (NTSC)
View Angles: 62 degrees
Minimum Illumination: 1.0Lux / F1.5
Gain Control: Automatic
Transmission Power: 10mW
Consumption Current: 80 mA
Modulation Mode: FM
Bandwidth: 18M
Operating Range: 30m/100m (Obstructed / Unobstructed)
Power: 5V; Buit-in Li-Battery
Operating Temperature: -10º C ~ +40º C
Operating Humidity: 85%RH
Dimension(WxLxH): 72x22x65 mm
Weight: 60g

Receiver (monitor):
Frequency: ISM 2, 400 - 2, 483MHz
Antenna: Omni-directional antenna
Channel: 1-4 (Flip-type switch)
Intermediate Frequency: 480MHz
Frequency Stabilization: +/- 100KHz
Demodulation Mode: FM
Receiving Sensitivity: < OR = -85dBm
Video Output: 1Vp-p@75 ohm, S/N>38dB
Audio Output: 1Vp-p@600 ohm
Power: DC 6V
Operating Temperature: -10&ordm; C ~ +40&ordm; C
Operating Humidity: 85%RH
Dimension(WxLxH): 130x23x70mm
Weight: 250g
