IP High speed dome

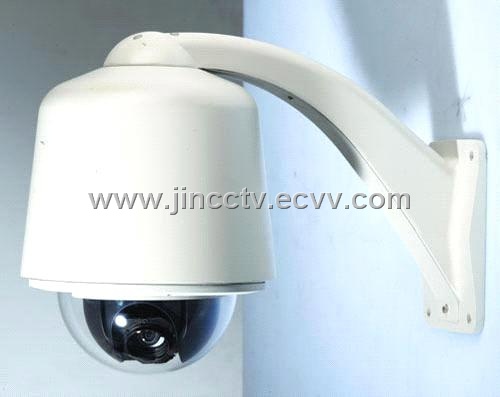

JN-310 Outdoor IP High Speed Dome

Ethernet 10/100M

Video parameter

Compressed format: MPEG-4

Resolution:

D1(720í576),CIF(352í288), QCIF(176í144)

Protocol

TCP/IP, PING, HTTP, UDP

Max frames per second

25 Frame/s（PAL); 30 Frame/s（NTSC）

Compression Rate

10~200 : 1

Customer connect

20 users in Max

Image sensor

1/4'' CCD

White balance

Auto

Min. illumination

0.7Lux or 0.01Lux

Lens focal length

F=4.1 ~ 73.8mm, 16íZOOM （ Option ）

Focus & Iris

AUTO/manual

Preset

64

Pan speed

0 ~ 250/s

Tilt speed

0 ~ 120/s

Pan rotation

360 continuously

Tilt rotation

90

Work temperature

-10℃~55℃

Relative humidity

20%~80%RHG

Power source

AC 24V

Power consumption

20VA

Weight

9kg

Dimensions

Six-inches
