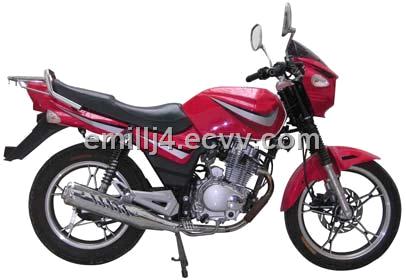

150cc EEC/EPA streetbike EI150-28

Detailed Product Description

Model	HS150-28
Type	/
Enterprise standard	Q/HS205-2005
vehicle identification number	☆LWGPCKL5*********☆
L× W×H	2035㎜×690㎜×1140mm
Wheel base:	1250mm
Mass of the vehicle in running order	126kg
Unladen mass of the vehicle	115kg
Maximum laden mass:	276kg
Maximum speed:	95km/h
Angle of running on slope	/
Fuel capacity	18±0.1L
Brake	front disc,rear drum
Front arrester type/mark	LB、TS/ HSUN
Rear arrester type/mark	ZY、CH/ HSUN
Muffler	e13 X125-7 add activator φ35×60mm(FRONT)φ35×60mm(REAR)
Air-filter	e13 K125-7
Anti-refitted mark	Without
Marked position of frame	Stand pipe,right
Content of mark	e132002/240124
Content of mark	84dB（A）-4250min-1
Marked position of scutcheon	Stand pipe,left
Front headlight identification number	E4-57R-0110314/E4-113R-0011157/ E4-113R-0011565
Head light(front, position)	E4-50R-0010314/E4-50R-0011157 E4-50R-0011565
Front signal light identification number	E13-50R-001279
Rear signal light identification number	E13-50R-001278
Light (rear ,license)	E13-50R-001277
Taillight identification number	E13-50R-001277
Side reflector identification number	IA-E9-02.1270/IA-E13-02 1106
Rear reflector identification number	IA-E13-02 1105/IA-E9-02.1269
Horn reflector identification number	E1328R0028R00*0645
Rear view mirror identification number	E4-81R-000127 E1381R0081R00*1154
Front wheel identification number	2.75-18/E4-75R-0004829
Rear wheel identification number	110/90-16/ E4-75R-0004832
Meter type / mark	HS/HSUN

Engine
model	HS161FMJ
Bore×Stroke	φ61.0㎜×49.5㎜
Actual exhaust	145 cm3
Nominal exhaust	150 cm3
Compression ratio	9.2±0.1:1
Max. power	9.0kW 8500 min-1
Max. torque	11.0N.m 7500 min-1
Cool	Air cooling
Starting system	Electric /foot start
Ignition system	CDI
Second air supply	Cylinder supply
Drive	Chain drive
Gearshift	Gear 1—Nutrual—Gear 2—Gear 3—Gear 4—Gear 5
Primary drive ratio	4.056
Ⅰdrive ratio	2.769
Ⅱdrive ratio	1.882
Ⅲdrive ratio	1.4
Ⅳdrive ratio	1.13
Ⅴdrive ratio	0.96
Ⅴdrive ratio	0.96
Nutrual	With
Last drive ratio	3.733
Speed limit	/
reverse	/
Spark plug	A7RTC
Spark plug cap	With mental cover
Carburetor type/mark	PZ27/DENI 、KEIHIN
Magneto tyle/Mark	HS/HSUN
Ignition type/mark	HS/HSUN
