Mini wireless camera with Nightvision

Prev Product

Next Product

Detailed Product Description

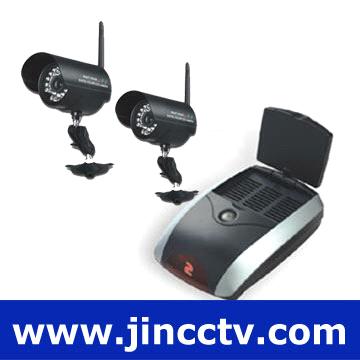

Mini wireless camera with Nightvision

USB 2.0 output to PC and AV output to TV/Monitor
Bundle with security software
Image capture, and high speed MPEG4 real-time recording
Support MSN Messenger and Skype
Built-in microphone for audio monitoring
4 channels optional to avoid possible interference
Night vision (Effective range: 3m)
Up to 100m (330ft.) transmission range in open space

	Item	Value
GENERAL	Transmission Frequency	ISM 2,400~2,483 MHz
	Transmission Power	10mW/CE; 2mW/FCC
	Operating Frequency	2414MHz;2432MHz;2450MHz;2468MHz
	Unobstructed Effective Range	100m(Min.)
	Modulation Mode	FM
	Operating Temperature	-10 ~ +50(Degree C) / +14~ +122(Degree F)
	Storage Temperature	-20 ~ +60(Degree C) / -4 ~ +140(Degree F)
	Operating Humidity	≤85%RH
CAMERA	Imaging Sensor Type	CMOS
	Picture Total Pixels	PAL:628×582 Pixels; NTSC: 510×492 Pixels
	Horizontal Resolution	380 TV Lines
	View Angle	PAL:60°; NTSC:40°
	Minimum Illumination	0Lux
	Night Vision Range	3m
	BandWidth	18M
	Consumption Current	110mA (Max.)
	Power Supply	DC +8V
	Dimensions(W×D×H)	464257 mm
	Weight	89g
RECEIVER	Antenna	50 ohm SMA
	Receiving Sensitivity	≤-85dBm
	Intermediate Frequency	480MHz
	Video Output Signal Level	1.1Vpp±0.2Vpp@75 ohm, S/N >38dM
	Audio Output Signal Level	3.0Vpp±1Vpp@600 ohm
	Consumption Current	190mA(Max.)
	Power Supply	DC +5V
	Dimensions(W×D×H)	687816 mm

Post Date:	7/3/2008
Expiry Date:	6/28/2009
