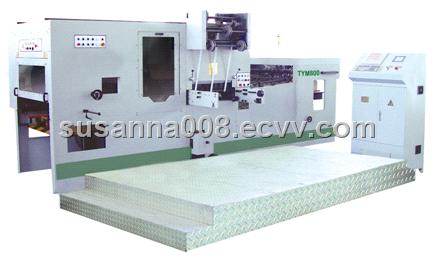

TYM800 AUTOMATIC FOIL STAMPING & DIECUTTING MACHINE

Detailed Product Description

Max. paper size

800x620mm

Min. paper size

350×290mm

Max. cutting size

790x610mm

Heating temp

40-190℃

Electrical heating power

12kw

Max. Foil diameter

Φ210mm/3" core rolling
Φ100mm/1" core rolling

Max. pressure

150t

Max. cutting speed

7500s/h

Max. stamping speed

5000s/h

Total power

38kw

Total weight

10t

Thickness of paper for processing

E corrugated paper≤4mm
Cardboard 0.1-1.5mm

Overall dimension(L×W×H)

5300×3500×2100mm
