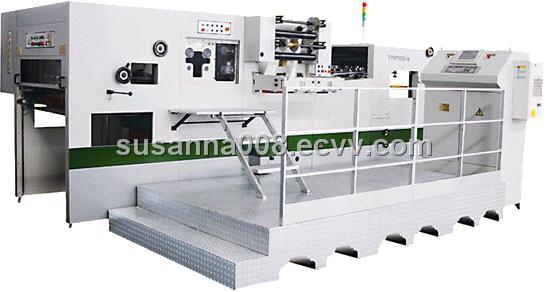

TYM1020-H Foil Stamping and Diecutting Machine

Detailed Product Description

Model
TYM1020-H
Max. Paper Size
1020X720MM
Min. Paper Size
400X360MM
Max. Cutting Size
1010X710MM
Max. Foil Stamping Size
Longitudinal  970X685MM
Lateral  960X600MM
Foil-conveying Shaft Quantities
Longitudinal   3 pcs
Lateral  2 pcs
Max. Length of Foil Conveying
Longitudinal    700MM
Lateral     970MM
Quantities of Heating Areas
12pcs
Heating Temperature
0℃-190℃(adjustable)
Max. Foil Diameter

Φ195MM/3"
Φ100MM/1"

Thickness of Paper
Cardboard  0.1-1.5MM,
Corrugated Paper ≤4MM
Max. Cutting Speed
6500S/H
Max. Stamping Speed
5000S/H
Total Power
46.5KW
Pressure
250T
Net Weight
18.5T
Overall Dimension
5470X3940X2585MM
