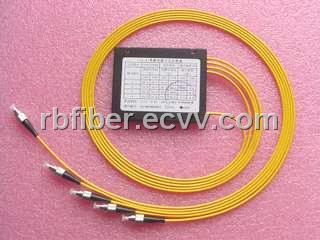

Sell Splitter module

Detailed Product Description

Features

?Low excess loss

?Single fusion design

?Uniform power splitting

?Compact size

Applications

?Telecommunication systems

?Digital, hybrid and AM-Video system

?CATV systems

?Fiber sensors

Type	Single Fused
Grade	P
Port Configuration	1 x 4
Excess Loss (Typ.) (dB)	0.30
Insertion Loss (Max.) (dB)	6.8
Uniformity (Max.) (dB)	1.0
Polarization Sensitivity (dB)	0.12
Operating Wavelength (nm)	980,1310, 1480, 1550, 1585+10nm or custom wavelength
Directivity (dB)	50
Operating Temperature (° C)	-40 - +85
Fiber Type	Corning Singlemode SMF-28, DS Fiber, or custom fiber
Fiber Pigtail Length (m)	1
Package Dimension (mm)	3X54mm or 3X60mm

Other Price Terms:

negotiable
