Shenzhen Synco Technology Co., Ltd.

Magnetic Card Reader

Magnetic Card Reader

Detailed Product Description

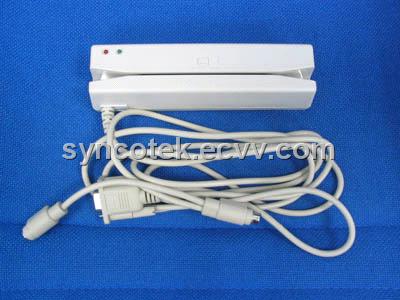

SC-720 Magnetic Card Reader

Feature：
. Low power consumption, CMOS for TTL interface.
. ISO 7811 conformance.
. Reading single, dual or triple tracks.
. Small size.

Specification

Card standard	ISO 7811 / 7812
Card operation speed	10 ~ 150 cm/sec(210 DPI)
Interface	RS232
Baud rate	1200 / 2400 / 4800 / 9600 bps
Life time of head	> 500,000 passes
Power	DC +9V / 5V±5%(host)
Decoding method	F/2F
Current	Single track 3.5 mA	Dual track 5.2 mA	Triple track 7.3 mA
Operation temperature	-10 ~ 50 °C, 15-85%RH, non-condensing
Cable length	1.5 m
Weight	250g
Dimension:	170X44X42mm

Model Description

SC-720-X-XX

Type	X-- Interface	XX-- Tracks
SC-720 MSR	R--RS232 Series port K--Keyboard compatible T--TTL	01--1 tracks 02--2 tracks 03--3 tracks 04--1&2 tracks 05--2&3 tracks 06--1&2&3 tracks
