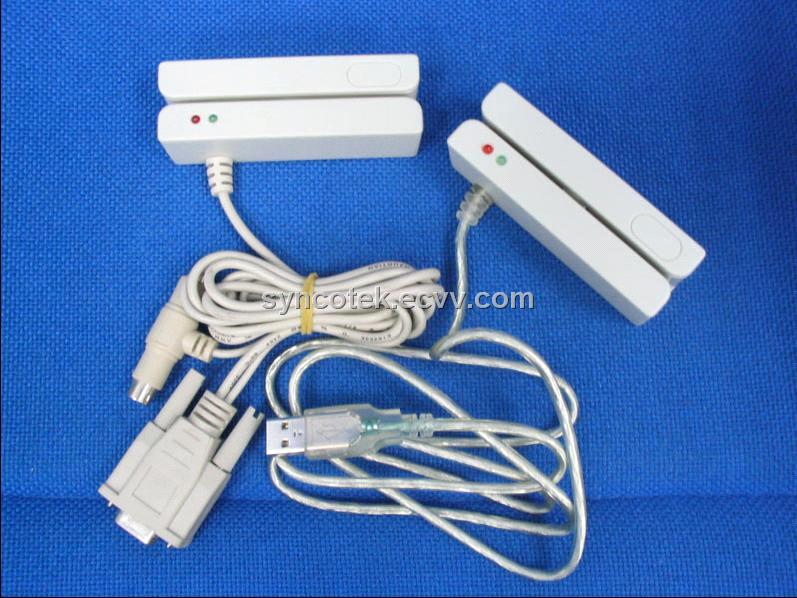

Magnetic Card Reader

Detailed Product Description

Feature：
. Manual swipe type reader.
. Bi-direction read capability.
. ISO 7811 conformance.
. RS-232 interface, baud rate adjustable.
. USB port and TTL at optional.
. Operation responded by two LEDs and buzzer.
. Power supplied by PC keyboard.
. Small size. ( Dimension(L*D*H): 90*28*27 mm)
. DLL/OCX developing kit for Windows98/ME/NT/2000/XP.
. Sleeping mode (power saving).
. Cover: Plastic

Specification

	Track 1	Track 2	Track 3
Recording density	210 BPI	75 BPI	210 BPI
Capacity	79 characters (7 bit code)	40 characters (5 bit code)	107 characters (5 bit code)
Power	Power supplied by the computer Power supplied by the cocomputer
Card operation speed	10 ~ 180 cm/sec 10 ~ 180 cm/sec
Decoding method	F/2F
Operation temperature	-10 ~ 50°c
Life time of head	Approx. 300,000 passes
Baud rate	2400 bps,9600 bps,19200 bps
Card standard	ISO 7811
Cable length	120 cm
Dimension (LDH)	902827 mm

Model Description:SC-750-X-XX

Type	X-Interface	XX-Tracks
SC-750 Mini MSR	R--RS232 Series port U--USB port K--Keyboard compatible T--TTL	04--1&2 tracks 05--2&3 tracks 06--1&2&3 tracks
