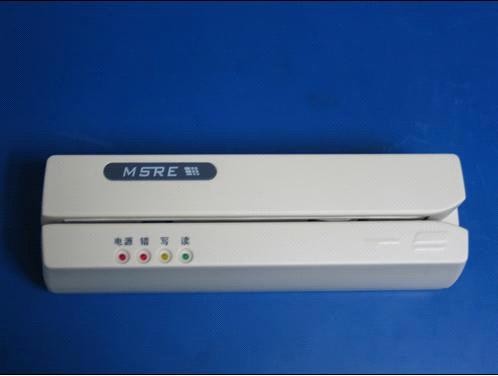

Magnetic Card Reader&Writer

Detailed Product Description

SC-2300 Magnetic Stripe Reader/Writer can read / write magnetic cards from low to high coercivity, provides reliable magnetic stripe reading/writing solution for bank business, retail, security and other related systems.

Features:

Compact size
manual swipe to read/write data with a single pass
Read/ write magnetic stripe card in both ISO & IBM format
Read / write magnetic cards of Hi/Lo Co 300-4000oe
Read/ write up to triple tracks (track 2&3 or track 1&2&3)
LED & beeper indication for power on/read/write operations
Well designed software/hardware and imported key components ensure the whole excellent performance
Module structure technology applied to ensure high efficiency and reliability

Specifications:

Card standards	IBM, ISO, DIN, ANSI
Manual feeding speed	20~100mm/sec
Writing density	1^st track 210 BPI (max 76 characters)
	2^nd track 75 BPI/210 BPI (max 36/104 characters)
	3^rd track 210 BPI (max 104 characters)
Interface	RS232, 2400/4800/9600 bps at option
Reliability	MTBF > 20000H, MTTR < 30 MIN
Magnetic head lifetime	Min. 300,000 swipes
Power supply	DC+12V by external adaptor
Working conditions	0~40℃ 15%~85% RH non-condensing
Dimensions (L ′W ′H)	210mm ′60mm ′60mm
Cable length	2m
Weight	About 1.4Kg
Housing	Plastic PC, Ivory color

Model Description: SC-2300-X-XX

Type	X-Interface	XX-Tracks
SC-2300 MSRE (With Hi-Co and Lo-Co)	R--RS232 Series port	44--1&2 tracks 55--2&3 tracks 56--1&2&3 tracks

For example

SC-2300-R-66 – MSRE (Hi-Co & Lo-Co), with RS232 series interface, triple tracks (1/2/3)
