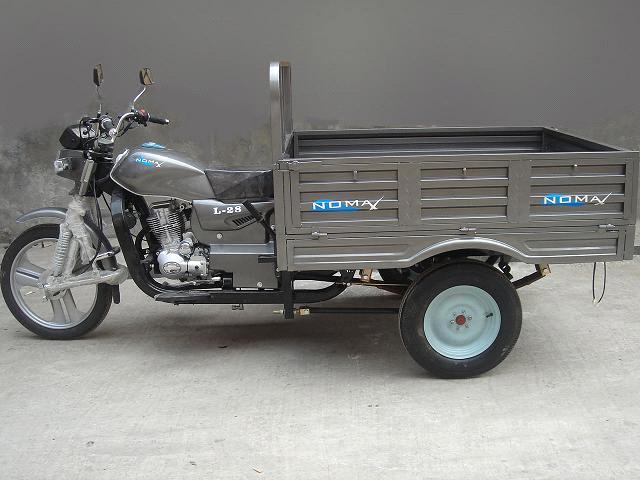

3 wheeler

Detailed Product Description

Specification:150cc

Engine Type: 4 Stroke, single cylinder, wind-cooled

Displacement(ml):144.6

Compression ratio: 9:1

Max. power & rotating speed: 9.0kw/9000 r/min±300 r/min

Rated .power & rotating speed:8.5kw/9000r/min±300r/min

Max. torque & rotating speed: 11.0N.m/7500r/min±225r/min

Idle speed: 1420rpm

Ignition: CDI

Fuel: RQ-90

Dimension (L*W*H):3000*1250*1360

Net weight (kg):260

Max load (kg):300

Brake (F/R): Drum/Drum

Starting system: Electrical/Manual pull

Tire size (F/R): 4.5-12

Transmission: Shaft

Ground clearance (mm):180

Wheelbase (mm): 1970

Loading Qty(40HQ) :40--55 sets
