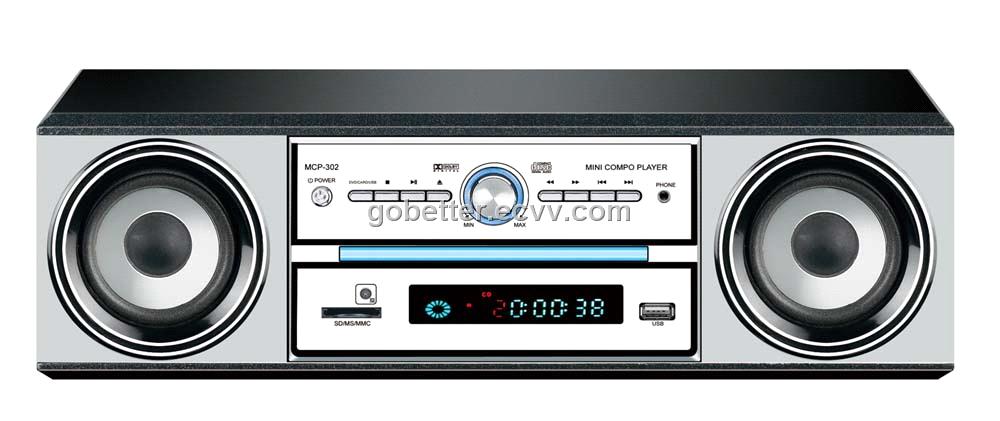

DVD MINI COMBO PLAYER MCP-302

Detailed Product Description

DVD section
●Full DVD Function；USB Port；3 in 1 Card Reader，CD Ripping

Amplifier Section
●Power Output：16 W + 16 W (8 ＆#8486;, 1 kHz, FTC)
●THD (Total Harmonic Distortion)：5 % (Power Rated)0.4 % (1 kHz, 1W)
●Damping Factor：70 (Front, l kHz, 8 ＆#8486;)
●Input Sensitivity and Impedance：150 mV/47 k＆#8486; (LINE)
●Output Level and Impedance：120 mV/2.2 k＆#8486; (REC OUT)
●Frequency Response： 10 Hz–100 kHz/±3 dB (LINE)
●Tone Control：±10 dB, 100 Hz (BASS)；±10 dB, 10 kHz (TREBLE)；+4.5 dB, 80 Hz (S.BASS 1)；+7.5 dB,
80 Hz (S.BASS 2)
●Signal to Noise Ratio：100 dB (LINE, IHF-A)
●Speaker Impedance： 4 ＆#8486;–16 ＆#8486;

Tuner Section（FM）
●Tuning Frequency Range：87.5 MHz–108.0 MHz
●Usable Sensitivity： Stereo：22.2 dBf (75 ＆#8486; IHF)/Mono：15.2 dBf (75 ＆#8486; IHF)
●Signal to Noise Ratio： Stereo：67 dB (IHF-A)/Mono：73 dB (IHF-A)
●THD： Stereo：0.5 % (1 kHz)/Mono：0.3 % (1 kHz)
●Frequency response： 30 Hz–15 kHz/±1 dB
●Stereo Separation： 40 dB (1kHz)
●Up to 30 stations memory storable tuner with FM auto preset feature

General
●Power Supply：AC 110–220 V, 50 Hz
●Power Consumption：40 W
●Stand-by Power Consumption： 1.0 W
●Audio Inputs： LINE IN
●Audio Outputs：Coxial；Scart；L/R Output；Earphone（Stereo）
●Video Outputs：CVBS；Scart
●Operation Condition：Temperature/Humidity 5 °C–35 °C (41 F–95 F)/5 %–85 %
●Disc Compatibility：DVD-video；DVD-R/RW；CD；CD-R/RW；Video CD；SVCD；WMA, MP3, JPEG

Others
●Full-function remote controller
