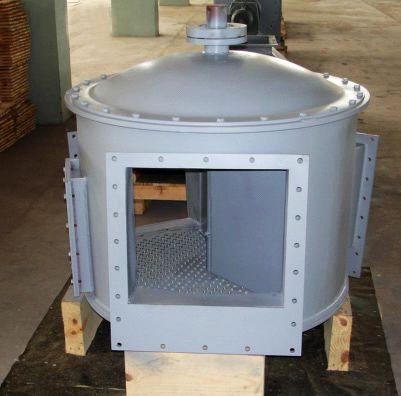

Electric Distribution Valve

Electric Distribution Valve

Electric Distribution Valve

  Prev Product Contact Now Next Product

Detailed Product Description

1. Introduction
ESV series electric distribution valve is applied to control the powder material’s flow direction by adjusting the cylinder position of the valve, which is widely used in building materials, metallurgy, mining, light industry, food and other industries, and it is the ideal equipment for direction change during transmission system for solid grains and powder materials.

Electric distribution valve is controlled by electric actuator, which is expected to rely on the 4-20mA input signals.

2. Structure Features
This distribution valve has a quality steel plate welded structure, with small size, light weight, little resistance, which is drive by Bernard electric actuator, can realize the remote control of the material flow.

3. Technical Data
Electric
Distribution Valve
Specification
Φ530mm
Φ830mm
Φ1050mm
Max Flow Volume
300t/h
500t/h
  630t/h
Install Ascent
8°
8°
8°
Implementing Unit Model
AS-100
AS-200
AS-200
Motor Power (KW)
0.03
0.10
0.10
Max Torque (Nm)
1000
2000
2000
Input, Output Signal（mA）
4～20
Post Date:7/5/2008
Expiry Date:6/30/2009
