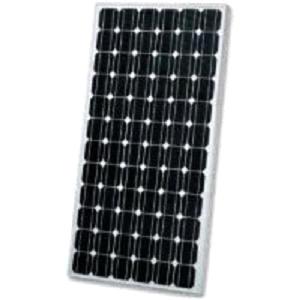

solar panel

Dimensions
Length: 1580mm(tolerance+/-mm)
Width: 808mm(tolerance+/-mm)
Depth: 46.5mm or 35mm
weight: 15.5kg
No.of cells and connections: 72(6*12)
Type of solar cell: mono-crystalline125*125mm

Characteristics
Maximum power:(W) 150 160 165 170 175
Maximum power volta:(V) 33.5 33.7 34.6 35.2 35.2
Open circuit current:(V) 40.1 41 43.6 43.8 44.2
Short circuit current:(A) 4.98 5.23 5.04 5.14 5.2
Maximum power current:(A) 4.47 4.75 4.74 4.83 4.95

Limits
Max.system voltage: 1000V DC
Operating temperature: -40'C to +85'C

Temperature and coefficience
Current temperature coefficience: %/k 0.06+-0.01
Voltage temperature coefficience: mv/k -(155+-10)
Power temperature coefficience: %/k -(0.5+-0.05)
