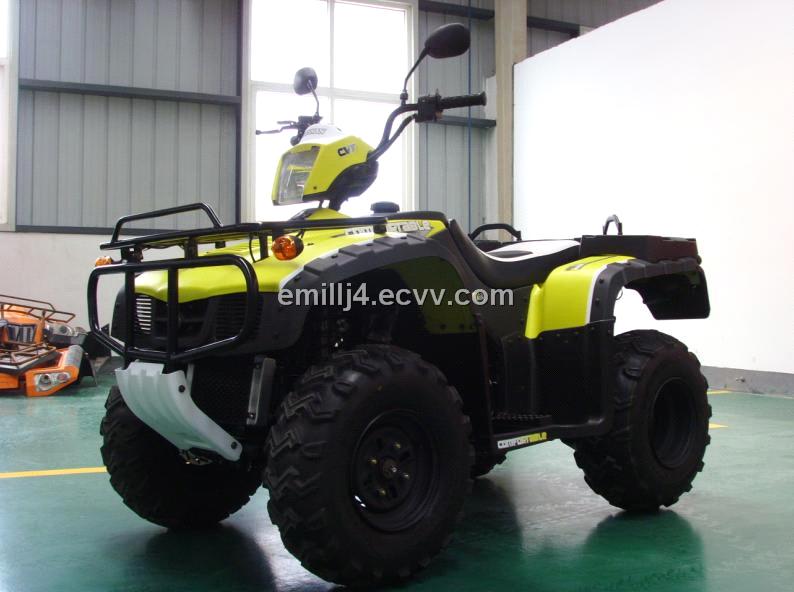

250cc EEC/EPA ATV(CVT engine)

Detailed Product Description

Dimension(LXWXH)(mm)：	1875×1060×1260
wheelbase(mm)：	1140
Engine type：	single cylinder, water-cooled, 4stroke, CVT
starting system	electric starter
Max power(kW/r/min)	11KW/7000r/min
Max Torque(N.m/r/min)	17.6N.m/5500r/min
Clearance(mm)	155
Max speed(km/h)	≥70
Net weight(kg)	240
Transmission system	drive shaft
Brake type	disk(front/rear)
Battery	12 V 14 Ah
Climbing	≥20°
fuel capacity(L)	11L
tyre specification	22×8-10(front); 22×10-10(rear)
BoreX stroke(mm)	72×60
Displacement(ml)	244
Height of the seat(mm)	820
Min turning semidiameter(mm)	3200
Ignition type	C.D.I
Max load	165
Passenger capacity	2
Lubrication:	Pressure/splash
pressure ratio	10:1
Packing dimension(mm)	1700×1150×880
Container Q'ty	20FT：12units 40FCL：24units 40HQ：36units
