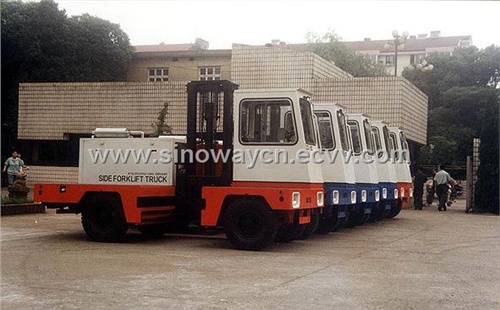

Sinoway side forklift truck

Prev Product

Detailed Product Description

POWER TRANSMISSION TYPE		MECHANICAL					HYDRAULICAL
MODEL		CCC3A	CCC3C	CCC4C	CCC5(A)	CCC6(A)	CCCD10
CODE NAME		M3A	M3C	M4C	M5	M60	M10
Max.lift capacity/CG of cargo (Kg/mm)		3000/600	3000/600	4000/600	5000/600	6000/600	10000/760
Max.lift height (mm)		3500	3500	2000	3550	3550	3600
Max.lift speed (laden) (m/s)		≥0.35	≥0.35	≥0.35	≥0.3	≥0.25	≥0.25
Max.traveling speed (laden) (Km/h)		24.8	24.8	24.8	22	22	24
Fork tilt angle (up/down) (^o)		5/3	5/3	5/3	5/3	5/3	5/3
Min.tuming radius (mm)		4300	4300	4300	4350	4350	5800
Gradeability (laden) (%)		≥22	≥22	≥22	≥20	≥18	≥20
Min.ground clearance (laden) (mm)		170	170	170	180	180	220
Platform height (mm)		920	920	920	990	990	1340
Platform width (mm)		1150	1150	1150	1220	1220	1760
Fork length (mm)		1150	1150	1150	1200	1200	1650
Max.fork spacing (mm)		940	940	940	1012	1012	1310
Axle spacing (mm)		2460	2460	2460	2600	2600	3700
Wheel spacing (F/B) (mm)		1600	1600	1600	1715	1715	2200/2110
Overall dimension (LWH) (mm)		4420	4420	4420	4511	4511	6200
		2035	2035	2035	2065	2065	2600
		2700	2700	2050	2800	2800	3450
Weight unladen (Kg)		5300	5300	5500	7500	7500	15000
Enging	Model	JD4G5	JD4G5	JD4G5	R4105G₂₂	R4105G₂₂	LR6105
	Kw/rpm	48/2300	48/2300	48/2300	58.8/2400	58.8/2400	77.2/2200
	N.m/rpm	223/1600	223/1600	223/1600	270/1680	270/1680	372/1400
