Annso Technology Co.,Ltd

19 Inch wide LCD All in one Computer

Detailed Product Description

All in one Computer > 19 Inch All-in-one Computer > 19 Inch wide LCD screen All-in-one Computer

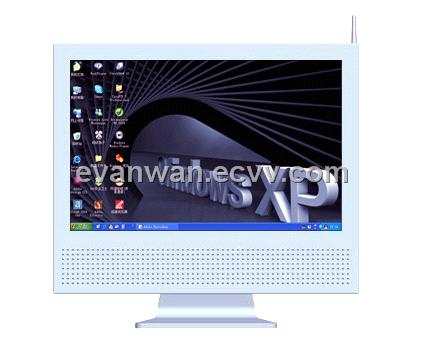

19 inches wide lcd  all in one computer PPC-19W





All-in-one 19" Wide screen LCD Panel PC, Intel /AMD/ VIA CPU Compatible
  Introduction

The display is the computer .The entire computer, support MINI-ITX form factor main board, s lim type optical drive, hard disk, card reader, speakers integrates inside a dazzling display. It combines all your life, music, photos, movies, email.... within a monitor-based space. You may enjoy the space you saved, the enchanting screen you earned and the comfortable user interface you are familiar to.


  Specifications

Mainboard

Standard MINI-ITX main board

Processors

Intel / AMD / VIA

Memory

Upgradable standard SDRAM / DDR /DDR2 memory

HDD

*3.5" x1 and 2.5" x 1

Optical Device

*Slim CDROM/DVDROM/Combo(DVD+CDRW)DVD ± RW

Display

Display Type : 19" wide screen WXGA TFT LCD
Resolution : 1440 x 900
Max.color : 16.2M
Luminance : 300 cd/m2
View Angel : 170°(H) , 160°(V)
Pixel Pitch : 0.285 x 0.285 mm
Contrast Ratio : 850 : 1
Response Time : 5 ms
Power Consumption : 21.72 W
LCD MTBF : 50,000hrs

Expansion Slots

*1 x PCI slot or 1x PCI-E

Speaker

*Built-in 2x stereo speakers(2w)

Multi-Media Card Reader

*CF/Micro Drive/MS Pro(Due)/SM/SD/(RS)MMC/XD(Optional)

Wireless LAN

32bit PCI card Interface. (Optional),Support 64 and 128 bit WEP Encryption
*802.11b:11Mbps Up to 180m(Outdoor), 35- 60 m(Indoor)
*802.11g:54Mbps up to 50m(Outdoor),20m(Indoor)

Touch Screen

Internal USB or RS-232 interface controller (optional)
Type: Analog resistive type : 25VDC ≥ 20MΩ
Resolution: continuous
Light transmission: 80% or more
Power consumption:<5V @1mA
Surface hardness : 3H
Operating force : ≤100g
Life expectancy : 35 Million

Power Adapter

*internal 120W power board
*External AC adapter ,Input: AC/100-240V(50/60Hz)2.5A ,Outpu t : DC/19V.7.5A 140W

Safety

CE/FCC

Measurements

Length: 46.8 cm; Wide: 3 4 cm; Thick: 9. 9 cm(Without the stand)

Weight




  Support

  • Support MINI-ITX form factor main board
  • Space for SATA 3.5" HDD x1 and 2.5" HDDx1
  • Slim optical driver
  • 120W Internal ATX power board + external ac adapter
  Optional

  • Wireless LAN
  • Touch Screen
  • 300W ATX Power Supply
  Ordering Information

PPC-19W

19" wide screen all in one lcd pc Platform

PPC-19WT

19" wide screen all in one lcd pc Platform with touch screen

PCI-E Kits

PCI-E riser card + fixed bracket kits
