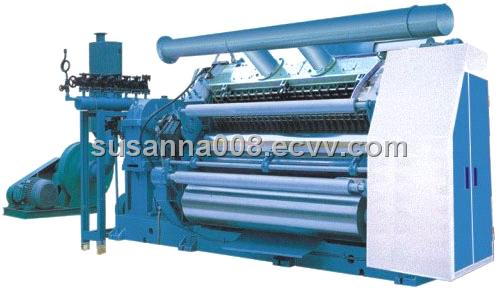

Fingerless Single facer

Application:
1、 Adapt to middle and high speed production line.
2、 Adopt in-draw structure with silencer.
3、 Electric adjust glue thickness, digital display.
4、 The diameter of corrugating roll is Φ260mm、
Φ310mm、Φ360mm、Φ430mm made from alloy
steel 48CrMo. Hardened treatment to its surface,
precision grinding, coated with chrome is optional,
hardness can reach HRC58-62.
5、 The working surface of each paper-guiding roll,
preheater and pressure roll is polished and coated
with chrome.
6、 Automatic, interval, circular and high grease provide
reasonable lubrication.
7、 Adopt infrared detector, auto paper break protection,
when breaking, the press roll and the glue plate will
be back.Specifications
1、 Max. speed: 100-120m/min
2、 Width: 1400mm-2500mm
3、 Flute: A, B, BC, E, F
