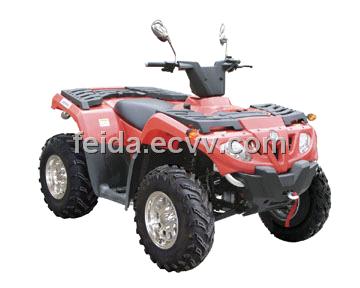

400CC ATV with EEC/EPA

Detailed Product Description

Engine: 400cc, water-cooled and four-stroke

Maximum power: 23W/8000rpm

Maximum torque: 32Nm/6700rpm

Start: electric

Ignition: CDI

Transmission: automatic (C.V.T system)

Maximum load: double seat per 200kg

Tank capacity: 16.2L

Maximum speed: 80kph (or limited as customers' requirement)

Brakes: hydraulic disc, right foot control

Tire:

Front: AT25 x 8-12

Rear: AT25 x 10 to 12

Front suspension: macpherson structure

Rear suspension: macpherson structure

Final drive: shaft drive

Product size: 2,220 x 1,230 x 1,220mm

Carton size: 2,300 x 1,290 x 870mm

Gross and net weight: 385 and 271kg

Container load: 27 pieces per 40-foot HQ, 8 pieces per 20-foot GP
